Beginning Your Plumbing Project

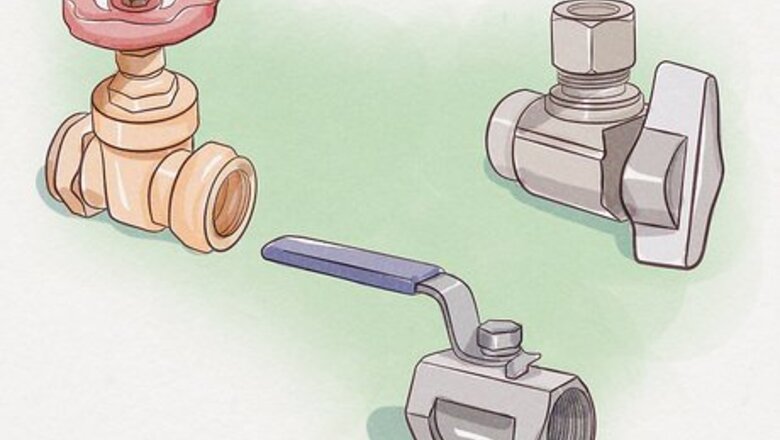

Identify your valve type. There are 3 types of valve connections, and your project's level of difficulty depends on how the valve connects to the water supply line. A threaded valve screws directly onto the water supply line and is easy to replace. In a compression connection, the valve screws into a hexagonal nut that fits around the supply line. The most difficult type to replace is a sweat valve, which is soldered onto the supply pipe. If you see a hexagonal (6-sided) nut, you'll know you have a compression valve. A threaded valve will have 2 to 6 flat sides where it meets the supply line. These flat sides allow you to remove the valve with a pipe wrench. If you have a sweat valve, you'll be able to see where the valve body is soldered, or melted, into the water supply line. You can cut off a soldered sweat valve and replace it with a compression fitting as long as the remaining supply line is long enough to hold the new valve's compression nut and sleeve.
Call a professional if your supply line is old or corroded. Regardless of your valve type, some jobs are better left to a professional plumber. If you have an older home with original plumbing, it's wise to have a professional replace valves. If you remove the valve and find that the pipe is internally rusted or threads are rotted, have a plumber install a replacement supply pipe.
Purchase a valve that fits the supply lines. The new valve needs to fit the main supply pipe and the lines to any fixtures (such as a sink or toilet) it feeds. If you're not confident that you can find the right size, remove the old valve, bring it to the hardware store, and ask an employee to help you find a match.
Shut off the water supply. Before you replace your valve, you'll need to locate your main valve and shut off the water supply. After shutting off the water, turn on the faucets on each level of your home to drain remaining water from the system. If you need to replace your home's main valve, call your utility company and have them shut off your lot valve.
Remove any supply lines that lead from the faulty valve. After shutting off the water and draining the system, use a pipe wrench to loosen any supply lines that lead from the valve to fixtures. These supply lines are usually flexible braided pipes, and they run from the valve to a faucet or toilet.
Replacing a Threaded Valve
Remove the valve by turning it counter-clockwise. If you have a threaded valve, all you need to do is twist it off the supply pipe. Affix a pipe wrench to the flat sides where the valve body connects to the pipe. Rotate it counter-clockwise to loosen and remove it. Remember to shut the water off before attempting to replace the valve.
Inspect the exposed threaded supply line. With the old valve removed, check inside the pipe for rust or corrosion. Ensure the threads are intact and will be able to receive the new valve. Call a plumber if your pipe is rusted or if the threads are rotted.
Replace the old Teflon thread tape. You'll likely find Teflon thread tape at the end of the pipe. Peel it off and discard it, and double check that the threads are intact. Then place a new strip of tape over the threads. You can find Teflon thread tape online or at a hardware store.
Screw the new valve onto the threaded supply line. After taping the threads, screw the new valve onto the pipe. Start turning it clockwise by hand, then tighten it with a pipe wrench. It needs to be tight, but not so tight that it's impossible to remove.
Reconnect supply lines to the new valve. After screwing the valve onto the main pipe, use the pipe wrench to reattach any supply lines that lead to fixtures, such as a faucet or toilet. Tighten them until you encounter resistance, but don't tighten them to the point that it's impossible to remove them.
Turn the water back on and check for leaks. When you turned off the water supply at the start of the project, you turned on faucets to drain the system. Make sure the faucets are turned off, then turn on the water supply. Check the valve you replaced for leaks and turn on (or flush) any fixtures it feeds. Tighten the valve with the pipe wrench if it leaks.
Replacing a Compression Valve
Loosen the compression nut by turning it counter-clockwise. Ensure that the water supply is off before removing the valve. Affix a pipe wrench to the 6-sided nut that holds the valve body in place. Rotate it counter-clockwise to loosen it from the valve body. The compression nut is a ring that fits around the pipe. After loosening it from the valve body, you can slide it down the pipe shaft and remove the valve. You'll follow this step only if your existing valve uses a compression fitting. If you're replacing a threaded or sweat valve with a compression valve, you'll need to cut the soldered or threaded end of the pipe before you install the new valve.
Remove the old valve and compression sleeve. With the compression nut loosened, simply pull the old valve off of the pipe. Locate the compression sleeve, which is a ring that fits snugly at the end of the pipe. Use pliers to carefully rotate it and remove it from the pipe, then slide off the compression nut. Don't use too much pressure with the pliers. If you warp the pipe, it won't receive the new valve.
Cut the old compression sleeve if it's stuck. If you can't remove the ring with pliers, cut it carefully with a small hacksaw. Insert a flat-head screwdriver into the slice you made in the ring, then twist the screwdriver to widen the ring. Pull the ring off the pipe, then slide off the old compression nut. Cut with finesse and make sure you don't cut through the ring into the pipe.
Cut an old soldered or threaded supply pipe, if necessary. If you're replacing a sweat or threaded valve with a compression valve, use a hacksaw to cut off the soldered or threaded end of the pipe. Cut slowly and carefully to avoid warping the pipe. Sand away rough edges with emery cloth when you've finished cutting. Make sure you leave enough pipe to hold the new fitting. Depending on the size of your new valve, you'll probably need at least 2 inches (5.1 cm).
Loosen or cut the pipes on each side of a 2-way valve. You'll need to remove piping at both ends if you're replacing a 2-way valve (as opposed to a pipe that comes out from a wall and feeds a faucet or toilet). If the pipes are old, corroded, or soldered onto the valve, cut each pipe just past where they connect to the valve. If the pipes connect to a 2-way valve with compression fittings, just loosen each compression nut.
Slide the new compression nut and sleeve onto the supply pipe. Make sure the threaded end of the new nut faces out so it can receive the new valve. Slide it all the way down the pipe so you have some room to work. Then place the new compression sleeve over the end of the pipe. The compression sleeve, or ferrule, needs to fit snugly. It creates a watertight seal between the valve and the pipe. If you purchased a valve that matches your pipe's diameter, the compression sleeve will be snug.
Thread the valve into the compression nut. Place the valve on the end of the pipe, then pull the compression nut down the pipe's shaft to the threaded end of the valve body. Rotate the nut clockwise by hand, then use a pipe wrench to finish tightening it. If you're replacing a 2-way valve, tighten the compression nuts on both ends.
Reattach supply lines, if necessary. If your valve feeds a faucet, toilet, or other fixture, replace the supply lines that lead from the valve to the fixture. Start them off by hand, then finish tightening them with the pipe wrench. Make sure they're not so tight that it's impossible to remove them in the event that they need service in the future.
Turn on the water supply and check for leaks. Make sure you've turned off the faucets you turned on to drain the system, then turn on your home's water supply. Head back to the valve you replaced and check for leaks. If you spot a leak, tighten the compression nut.
